Presentation

AUFIT is the acronym for Atari Universal Floppy-Disk Image Tool.

The primary function of the Aufit program is to analyzes the content of Atari Floppy Disks. Several Graphical and Text views are provided to display the results from this analysis.

Another important function of the program is to convert from an image file format to a different formats. Therefore Aufit program is frequently used to convert stream files to a format suported by the different Atari emulators. For example it is possible to convert KryoFlux .raw stream files to the Pasti .stx files used by many Atari emulators.

Currently the supported input formats are .scp (SuperCard Pro) and .raw (KryoFlux) and the supported output formats are .stx format for protected diskette and .st, .msa for non-protected diskettes.

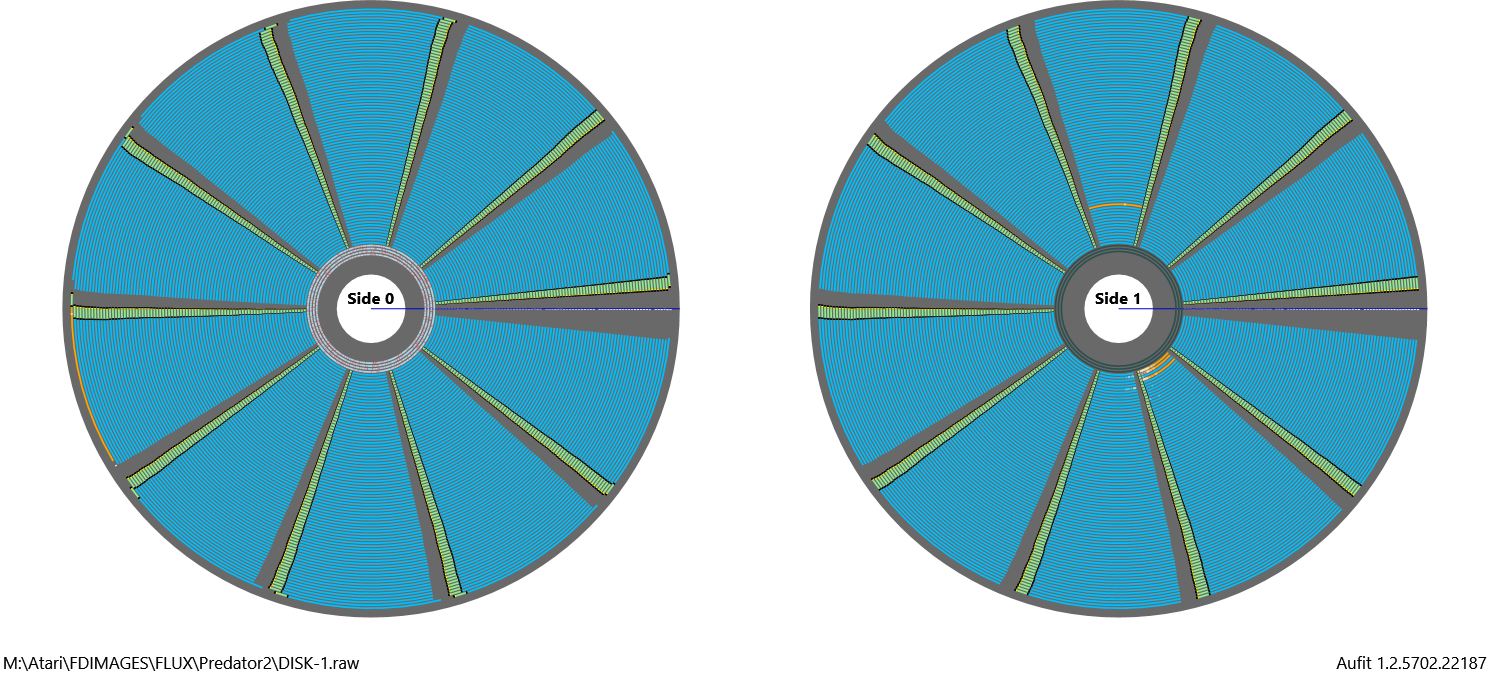

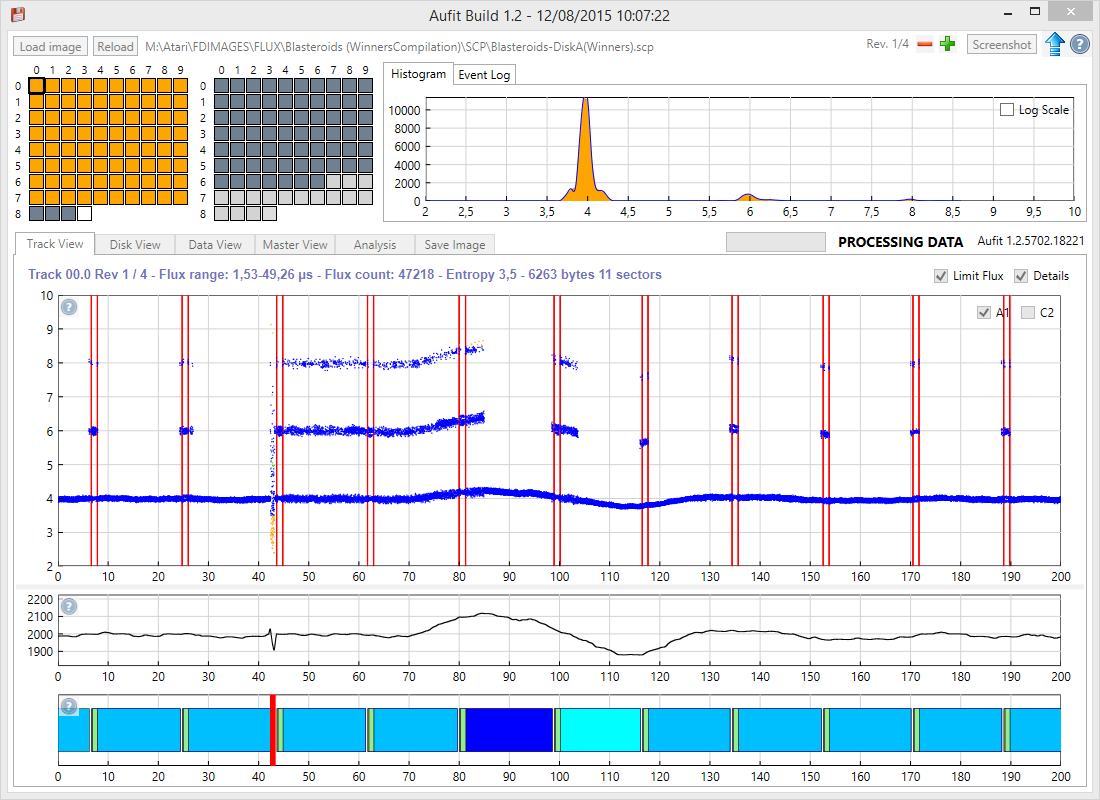

Beside the capability to convert, Aufit performs deep analysis of floppy disk images and displays the corresponding information. For example it is possible to display the "layout" of a FD, to detect most of the key disk protections used by a game, or to analyze the quality of the disk image.

The deep analysis of the FD content allows in some cases an automatic correction of errors found during imaging. For example it is sometimes possible to correctly save an image with partially damaged sectors.

The program has been designed to be as simple as possible to use for casual users only interested in converting files. In fact conversion of many images can be done in batch mode without user intervention.

However the program also provides powerful features to deeply analyze floppy content for more advanced users.



For feedback and discussion about Aufit please use the following thread.



It is possible to run the Aufit program in batch mode to automatically produce specific outputs without user intervention.

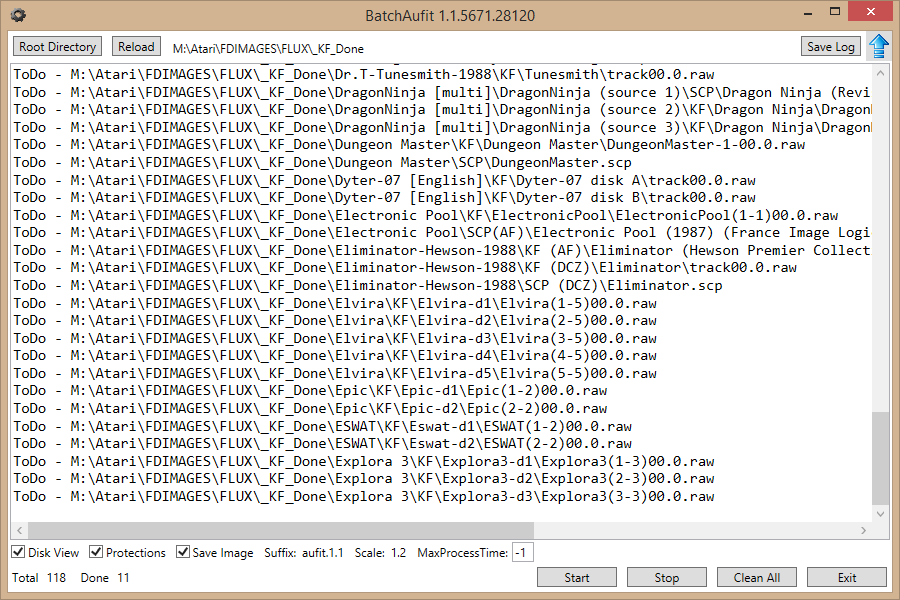

The BatchAufit program allows to automatically detect all FD images located inside a directory tree and to invoke the Aufit program in auto-mode for all the detected images not yet processed.

Back to the top

Download / Installation

The Aufit program is released as ClickOnce self-updating installed program or as a portable application.

With the clickOnce version you can check for newer versions on Internet and if available the update can be dowloaded and installed in one click.



Older releases (portable executable)



Back to the top

Open Source Project

Aufit is not yet an open source project
